單排球式回轉支承(HS系列)

發布時間：2016-09-18

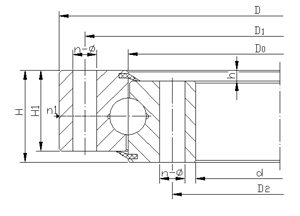

無齒式

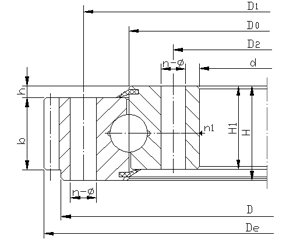

外齒式

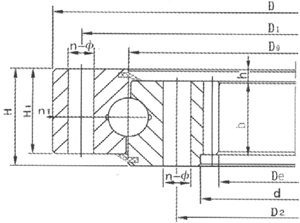

內齒式

序號	基本型號			外形尺寸			安裝孔尺寸				結構尺寸			齒輪參數		外齒參數			內齒參數
	無齒式	外齒式	內齒式	D	d	H	D1	D2	n	φ	n1	H1	h	b	m	x	da	Z	x	da	Z
				mm			mm			mm		mm		mm			mm			mm
1	HSB.25.625	HSW.25.625	HSN.25.625	725	525	80	685	565	18	18	3	68	12	60	5	+1.4	751.9	146	+0.35	498.8	101
		HSW.25.625A	HSN.25.625A												6	+1.15	755.5	122	+0.35	496.7	84
2	HSB.25.720	HSW.25.720	HSN.25.720	820	620	80	780	660	18	18	3	68	12	60	6	+1.4	860.3	139	+0.35	586.6	99
		HSW.25.720A	HSN.25.720A												8	+1.0	861.1	104	+0.35	582.3	74
3	HSB.30.820	HSW.30.820	HSN.30.820	940	705	95	893	749	24	20	4	83	12	70	6	+1.4	980.6	159	+0.35	664.5	112
		HSW.30.820A	HSN.30.820A												10	+1.0	986.2	95	+0.35	658.0	67
4	HSB.30.880	HSW.30.880	HSN.30.880	1000	760	95	956	800	24	20	4	83	12	70	8	+1.15	1047.5	127	+0.35	718.2	91
		HSW.30.880A	HSN.30.880A												10	+1.0	1046.3	101	+0.35	707.9	72
5	HSB.30.1020	HSW.30.1020	HSN.30.1020	1170	875	95	1120	930	24	22	4	80	15	70	8	+1.4	1219.3	148	+0.35	830.1	105
		HSW.30.1020A	HSN.30.1020A												10	+1.15	1219.2	118	+0.35	827.8	84
6	HSB.30.1220	HSW.30.1220	HSN.30.1220	1365	1075	120	1310	1130	36	24	6	105	15	90	10	+1.4	1424.9	138	+0.35	1027.8	104
		HSW.30.1220A	HSN.30.1220A												12	+1.0	1435.9	116	+0.35	1017.3	86
7	HSB.35.1250	HSW.35.1250	HSN.35.1250	1400	1090	120	1350	1150	36	26	6	105	15	90	10	-0.35	1443	143	+0.35	1037	105
		HSW.35.1250A	HSN.35.1250A												12	+1.0	1449.6	117	+0.35	1036.8	86
8	HSB.35.1435	HSW.35.1435	HSN.35.1435	1595	1278	120	1535	1335	36	26	6	105	15	90	12	+1.15	1655.5	134	+0.35	1221.2	103
		HSW.35.1435A	HSN.35.1435A												14	+1.0	1661.2	115	+0.35	1214.8	88
9	HSB.35.1540	HSW.35.1540	HSN.35.1540	1720	1360	140	1660	1420	42	26	6	122	18	110	12	+1.4	1780.8	144	+0.35	1293.1	109
		HSW.35.1540A	HSN.35.1540A												14	+1.15	1791.1	124	+0.35	1284.8	93
10	HSB.35.1700	HSW.35.1700	HSN.35.1700	1875	1525	140	1815	1585	42	29	6	122	18	110	14	+1.15	1945.4	135	+0.35	1452.7	105
		HSW.35.1700A	HSN.35.1700A												16	+1.15	1950.8	118	+0.35	1452.3	92
11	HSB.40.1880	HSW.40.1880	HSN.40.1880	2100	1665	160	2030	1740	48	32	6	140	20	115	14	+1.4	2189.8	152	+0.35	1592.6	115
		HSW.40.1880A	HSN.40.1880A												18	+1.15	2194.6	118	+0.35	1579.9	89
12	HSB.40.2115	HSW.40.2115	HSN.40.2115	2325	1900	160	2245	1980	48	32	6	140	20	115	16	+1.4	2406.5	146	+0.35	1804.1	114
		HSW.40.2115A	HSN.40.2115A												20	+1.15	2418.4	117	+0.35	1795.4	91
13	HSB.40.2370	HSW.40.2370	HSN.40.2370	2600	2146	180	2520	2220	48	32	6	158	22	130	18	+1.4	2707.3	146	+0.35	2065.6	116
		HSW.40.2370A	HSN.40.2370A												22	+1.15	2704.4	119	+0.35	2040.9	94
14	HSB.40.2600	HSW.40.2600	HSN.40.2600	2835	2365	180	2750	2450	54	36	6	158	22	130	18	+1.4	2941.7	159	+0.35	2263.5	127
		HSW.40.2600A	HSN.40.2600A												22	+1.15	2946.9	130	+0.35	2260.8	104
15	HSB.50.2820	HSW.50.2820	HSN.50.2820	3085	2555	200	3000	2640	54	36	6	178	22	150	20	+1.4	3188.4	155	+0.35	2455	124
		HSW.50.2820A	HSN.50.2820A												25	+1.15	3198.4	124	+0.35	2444.1	99
16	HSB.50.3120	HSW.50.3120	HSN.50.3120	3400	2840	200	3310	2930	54	36	6	178	22	150	22	+1.4	3507.2	155	+0.35	2722.5	125
		HSW.50.3120A	HSN.50.3120A												25	+1.4	3509.6	136	+0.35	2719	110
